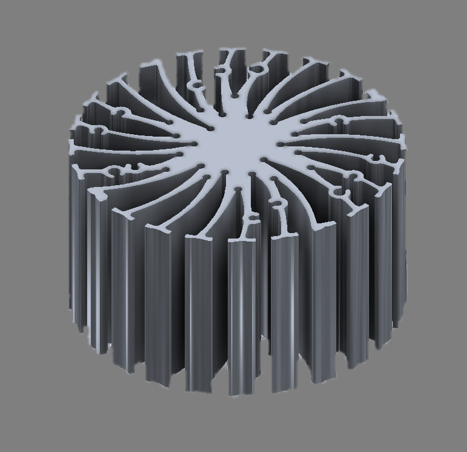

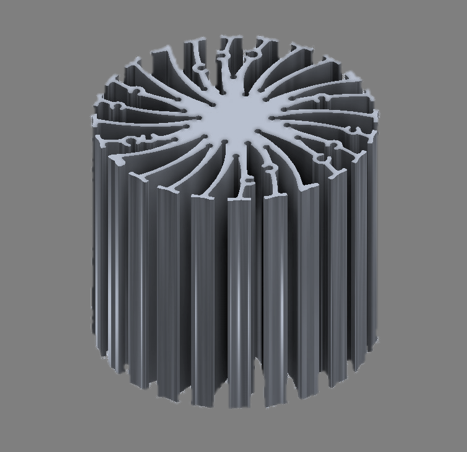

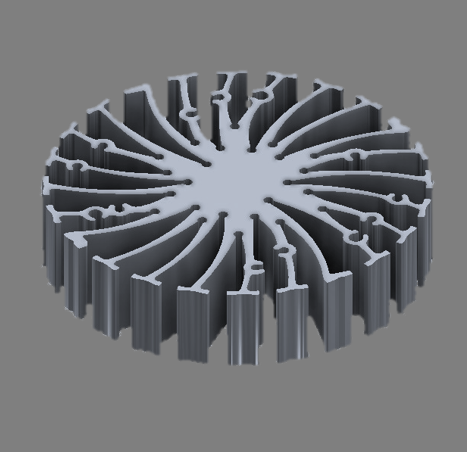

Aluminum heat sink designed for direct mounting of LED modules to the LED cooler, providing thermal performance matched to high-lumen packages. Features a modular design with predefined mounting holes for a wide range of COB and Zhaga Book 3 spotlight modules.
Applications:
Designed for Round LED Modules, ideal for Retail & Hospitality, Malls & Food, Architectural & Museum, Office & Education, Station & Airport, and Healthcare environments.
Technical Specifications
Material:
Extruded from highly conductive aluminum alloy 6063, T3.
Finishes:
Available in non-anodized, clear anodized, and black anodized.
LED Compatibility:
Supports Zhaga Book 3 spotlight modules and major LED brands including Edison, Xicato, Bridgelux, Osram, Citizen, Lumileds, Cree, Tridonic, Vossloh-Schwabe, Seoul, LG, Lustrous, Prolight, Samsung, SHARP, Luminus, Philips.
Mechanical Compatibility:
Direct mounting of LED COB to the LED cooler.
Thermal Performance:
Thermal resistance options of 2.08°C/W, 1.45°C/W, and 1.2°C/W.
Modular Design:
Mounting holes for a wide range of COB and LED modules.
Size Options:

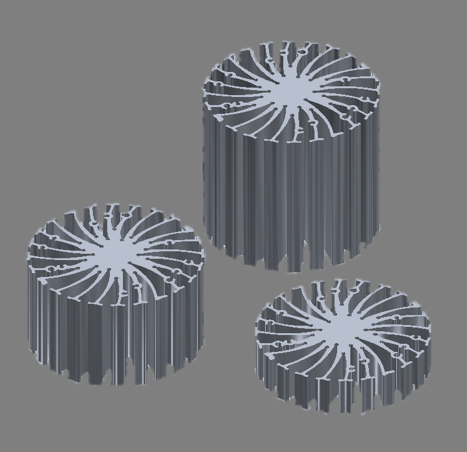

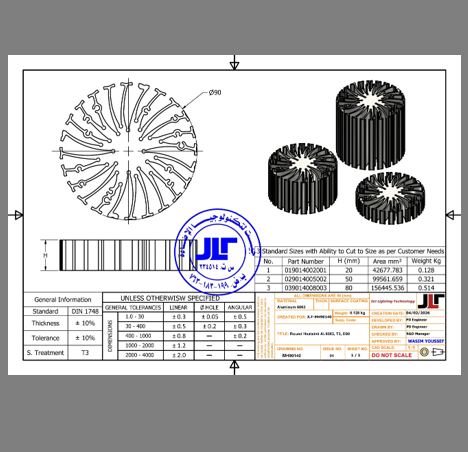

Diameter 90 mm; standard heights 20 mm, 50 mm, 80 mm; other heights on request.
