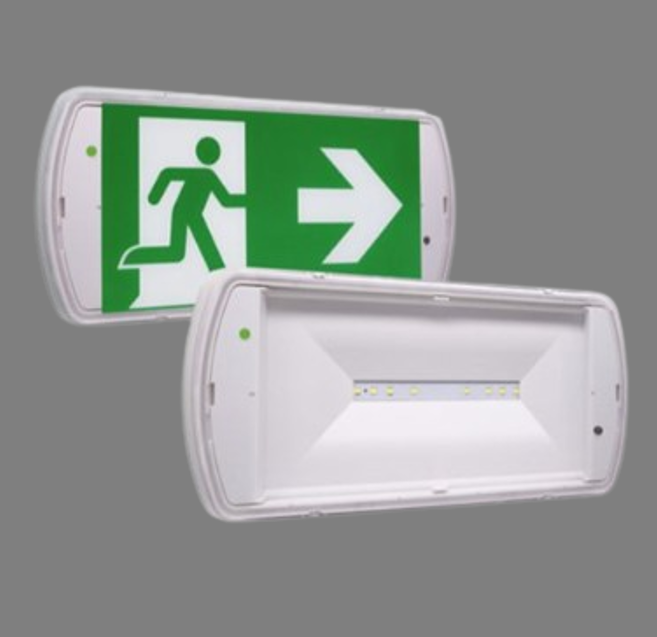

Durable LED emergency light and exit sign with selectable modes, easy surface mounting, and full European compliance.
Applications: Escape routes, open areas, commercial sites, offices, and public buildings.
Technical Specifications
Electrical
230V ±5% (220–240V) 50/60Hz, Ni-Cd battery, LED strip light source.
Emergency Exit Sign, IP42:
60 lm (emergency), 2.7 VA / 2.6 W (NM), 2.8 VA / 2.7 W (M), 3.6 V 0.8 Ah, 0.5 kg.
Emergency Exit Sign, IP65:
100lm (emergency), 3.2 VA / 2.5 W (NM), 3.8 VA / 3.2 W (M), 3.6 V 1.7 Ah, 0.7 kg, ISO (L, R, D).
Function & Operation:
Emergency luminaire or exit sign with stand-alone test and rest mode (TLU), maintained/non-maintained selectable.
Performance:
3hrs duration, 20m viewing distance.
Construction:
Polycarbonate housing (RAL9003), 850°C glow wire tested, Class II insulation.
Mounting:
Surface and Recessed Mounting.
Environment:
+5 °C to +40 °C operating temperature.
Compliance:
EC & EN certified for escape, anti-panic, and exit applications.

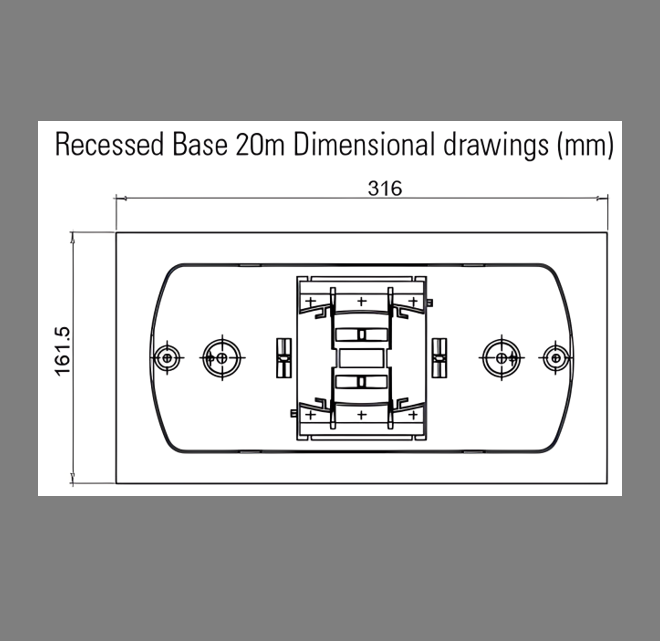

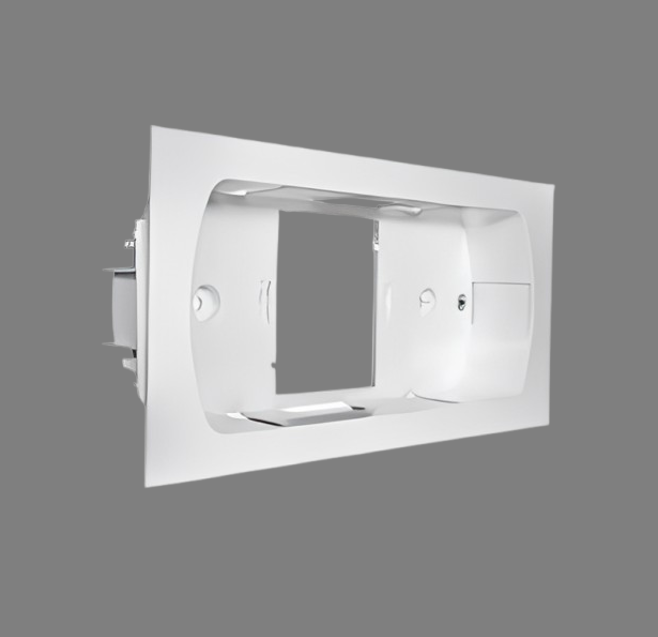

Recessed Base:
Compatible with IP42 & IP65 variants and suitable for double side diffusers.
Exit legends:
Set of adhesive exit legends, ISO7010 format, 3x Adh (Left, Right, Down).

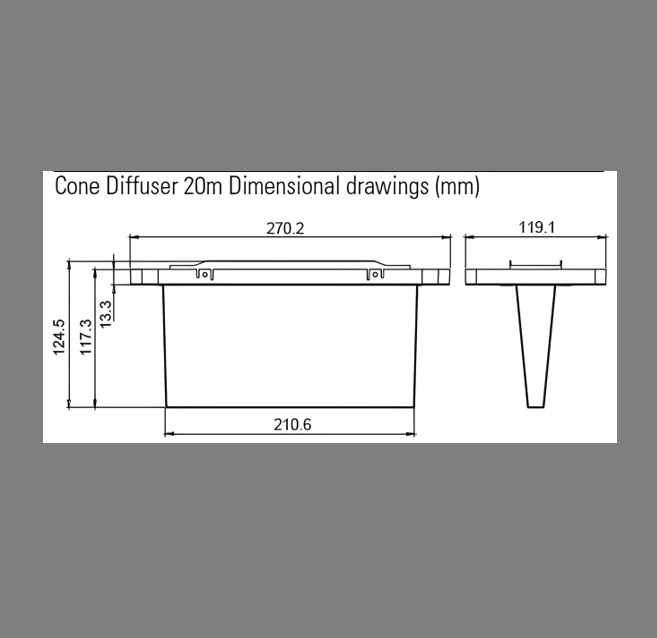

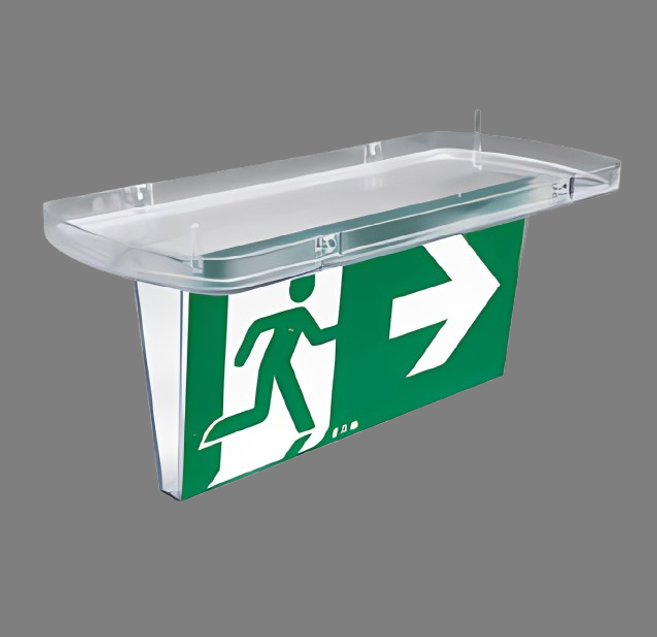

Diffuser:
Double Side Cone Diffuser Emergency Exit Sign for IP42 and IP65.
